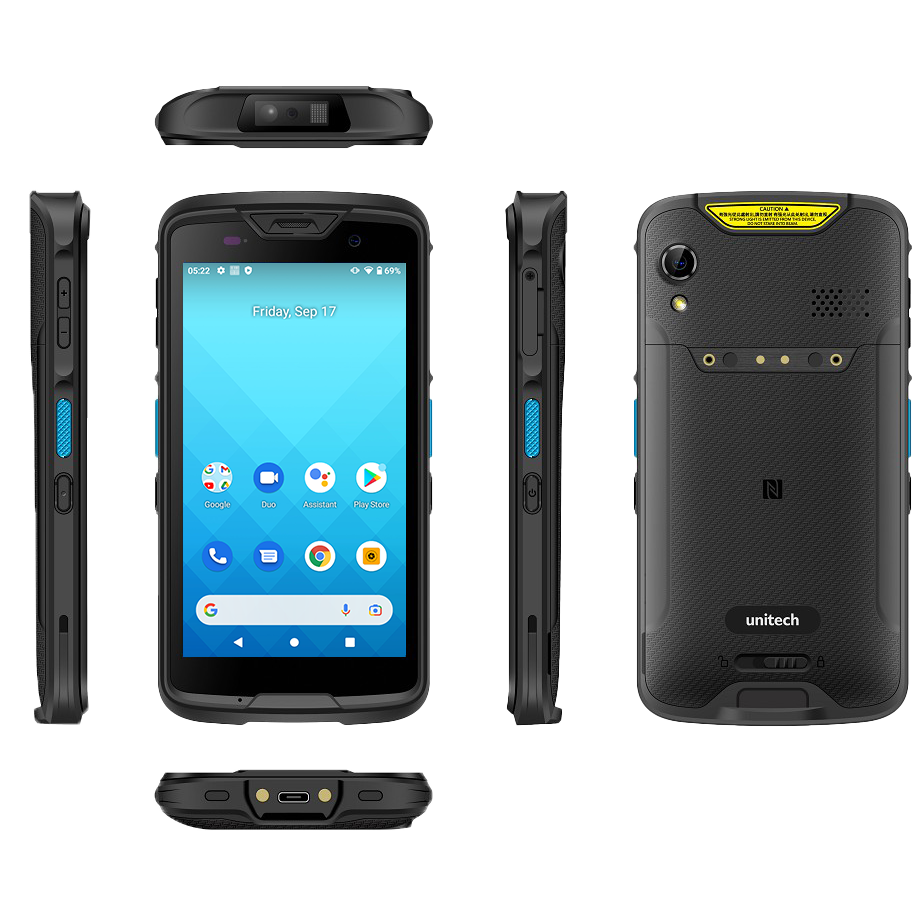

EA520
EA520 is designed with a comprehensive and rich selection of software tools, which can be used to perform software and hardware installation, deployment, and device management. When importing a large number of devices, it can assist information management personnel in efficiently setting up and going online. Through the MDM device management system, it can also improve the efficiency of system maintenance and management, fully considering the application requirements of all commercial and industrial environments.
EA520 provides powerful and diverse functions and features to assist enterprise users in saving costs and achieving the best benefits of mobile information workflows.
| Lightweight and strong enterprise smart phone | |||
| system function | communication | ||
| operating system | Google Android 11 (GMS certified) | camera | Rear lens: 13 million pixels (with auto focus and LED flash)；Front lens: 8 million pixels |
| CPU | 8-core (64 bit), 2.0 GHz processor | Expansion slot | MicroSD (up to 128GB) |
| Memory capacity | ROM 64GB RAM 4GB | GPS | AGPS, GPS, GLONASS, Beidou, Galileo |
| Display / touch screen | 5 "capacitive color multi touch screen，Resolution: 720 x1280 (hd), Corning gorilla high-intensity touch screen, Support glove and wet finger operation mode | wireless network | IEEE 802.11a/b/g/n/ac, 2.4GHz and 5GHz Support 802.11d/e/h/i/j/k/r/v, fast roaming Wireless network security management mechanism WFA, WPA and WPA2 Support VoWiFi and hotspot sharing |
| Language | Multi language support | USB | USB 2.0 (type-C) supports USB OTG |
| Barcode Scanning | BT | BT ® V5.0 | |
| 1D Barcode | UPC/EAN/JAN, GS1 DataBar, Code 39, Code128, Code 32, Code 93, Matrix 2 of 5, MSI, Codabar/NW7, Interleaved 2 of 5 | Other sensors | Accelerometer sensor, electronic compass, Gyro sensor, light sensor |
| 2D Barcode | PDF417, MicroPDF417, GS1 Composite ,Code11, Aztec Code, Data Matrix, QR Code, MicroQR Code, MaxiCode | WWAN | 4G LTE FDD: B1/B2/B3/B5/B7/B8/B20/B28A/B28B TDD: B38/B39/B40/B41 3G WCDMA: B1/B5/B8 2G GSM: 850,900,1800,1900MHz Dual sim design, support 4G dual card dual standby |
| Specification | Scanning Model | ||
| Battery | 3.8V, 4100mAH Lithium polymer battery | Scanner | 2D image type, support DPM barcode reading It also has scanning indication (sound, vibration) function |
| Falling height | 1.8m (free fall, with protective shell) fall protection | RFID | Support HF frequency 13.56MHz NFC (near field communication) ISO14443 A/B, ISO15693, Felica(ISO/IEC18092)，Mifare compliance |
| IP level | IP67 | Size | 151.1*76.8*13.7mm |
| Weight | 242g(battery included) | Operating temperature | -20°C to 60°C |
