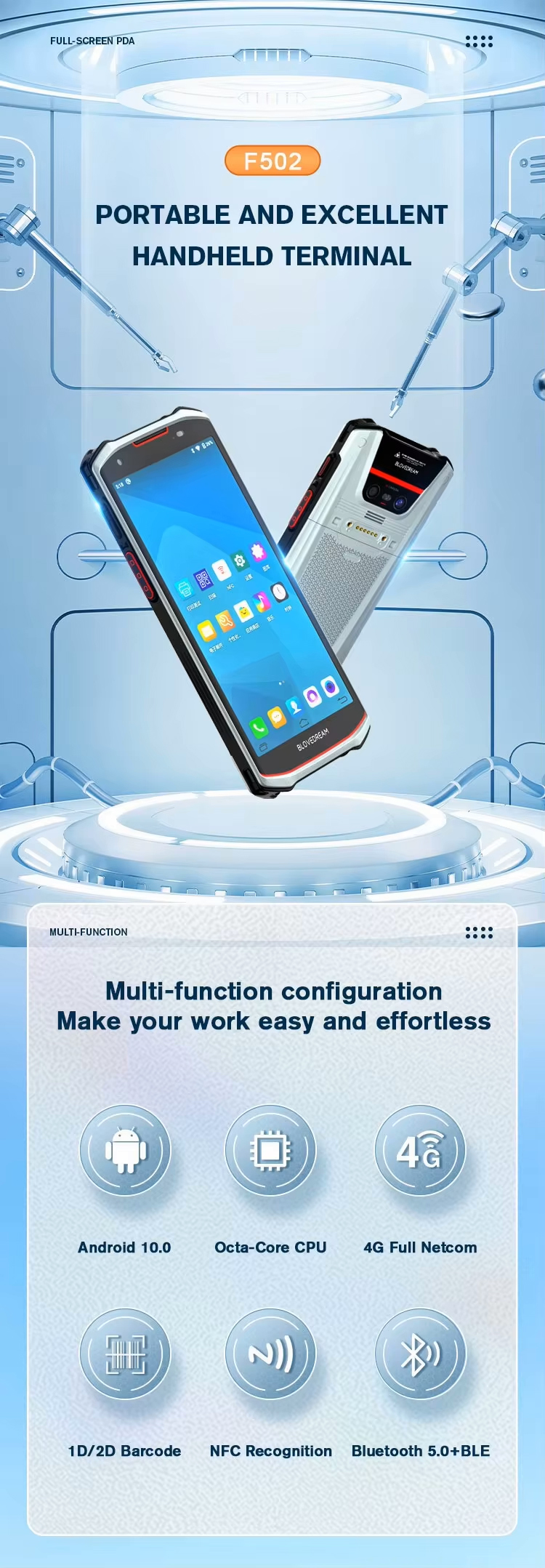

F502 Android Octa-core 4/64GB 2D Qr Code Reader Handheld Terminal Pda Android Barcode Scanner with Nfc

Availability:
Quantity:

1) Default Configuration: 1D+ 2D + Wifi + BT + 4G (FDD / TDD-LTE) + Phone + GPS + 13M Camera + Google Player Store
2)  NFC RFID are optional
3) Compact And Portable Ergonomic Design With Wrist Strap
4) Safedroid OS (Android 10.0) Highly Optimized Android Operating System.
5) 8.0M Mega Pixel Camera.
6) High Capacity 4500mAh Large Capacity Battery For Critical Requirements;
7) Pogo Pin Interface For Convenient Charging With Optional Charge Cradle.
8) Industrial Rugged Design, Water-Proof And Protection Grade (IP66);
9)About Shipment: We offer DHL shipping usually, but in emergency, we can choose another shipping option.

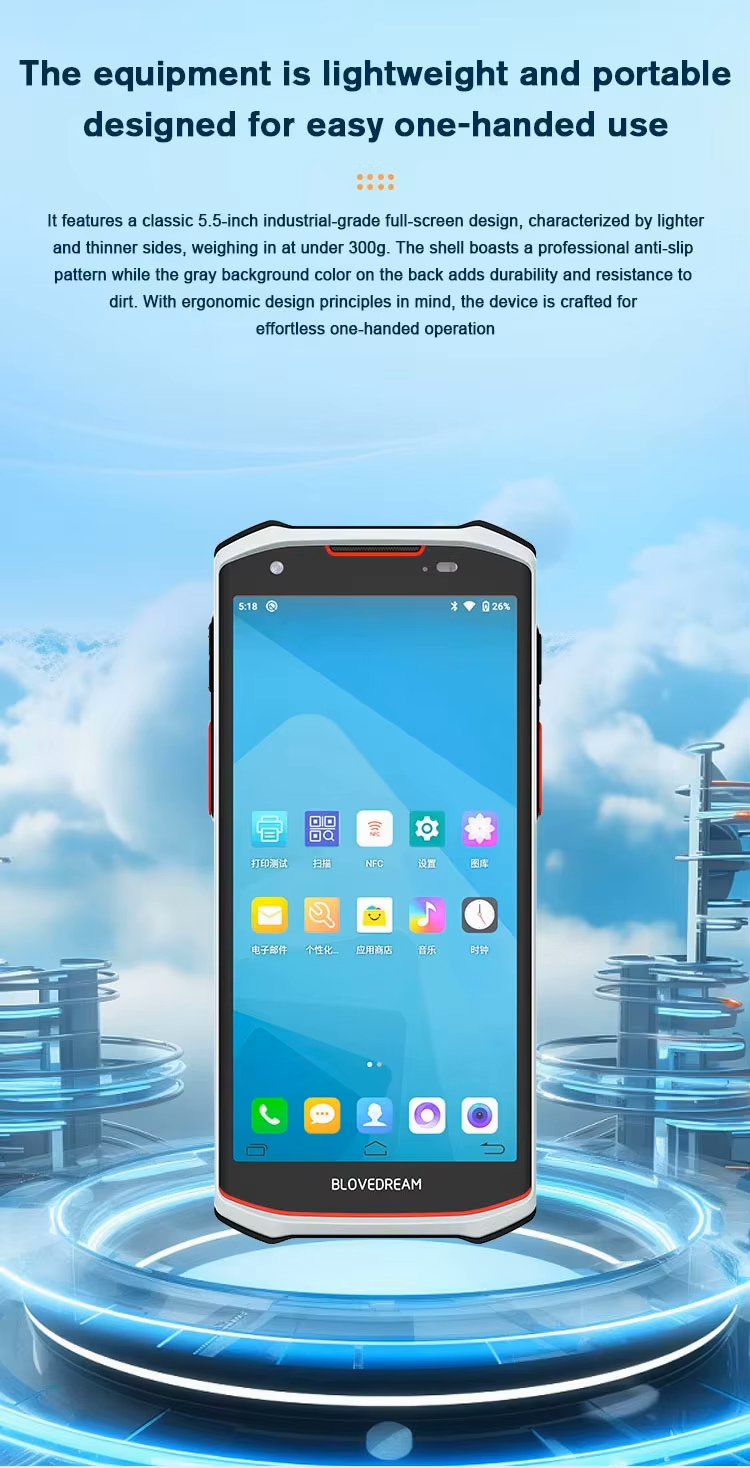

Lightweight and easy to hold

The F502 adopts a 5.5-inch full screen design, with light and thin sides

and a low weight of 300 grams. The outer shell is designed with

professional anti slip patterns, and the back gray is used as the background

color, which is durable and dirt resistant, in line with ergonomic design,

and easy to operate with one hand


Super configuration runs faster

Using an eight core processor and Android 10.0 system,

during operation, editing data, uploading data,

and images run smoothly without any issues


Front and rear camera imaging with fast and clear image quality

The F502 has optimized the camera, greatly improving image quality and clarity by 13 million pixels in the rear and 2 million pixels in the front (with optional 5 million pixels). The image quality is visible and delicate, meeting the needs of photography.

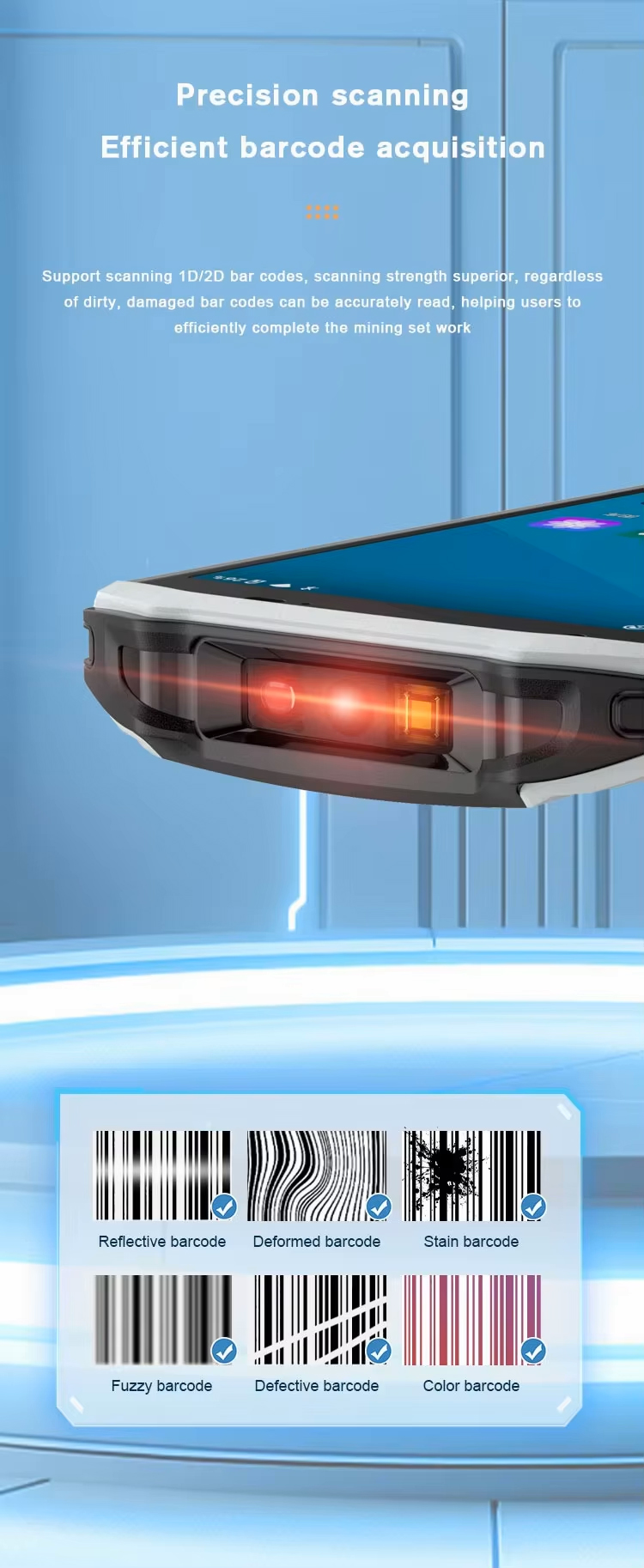

Accurate scanning and efficient collection

Supports one/two dimensional barcode scanning, allowing accurate reading of dirty or damaged barcodes, efficiently completing collection tasks

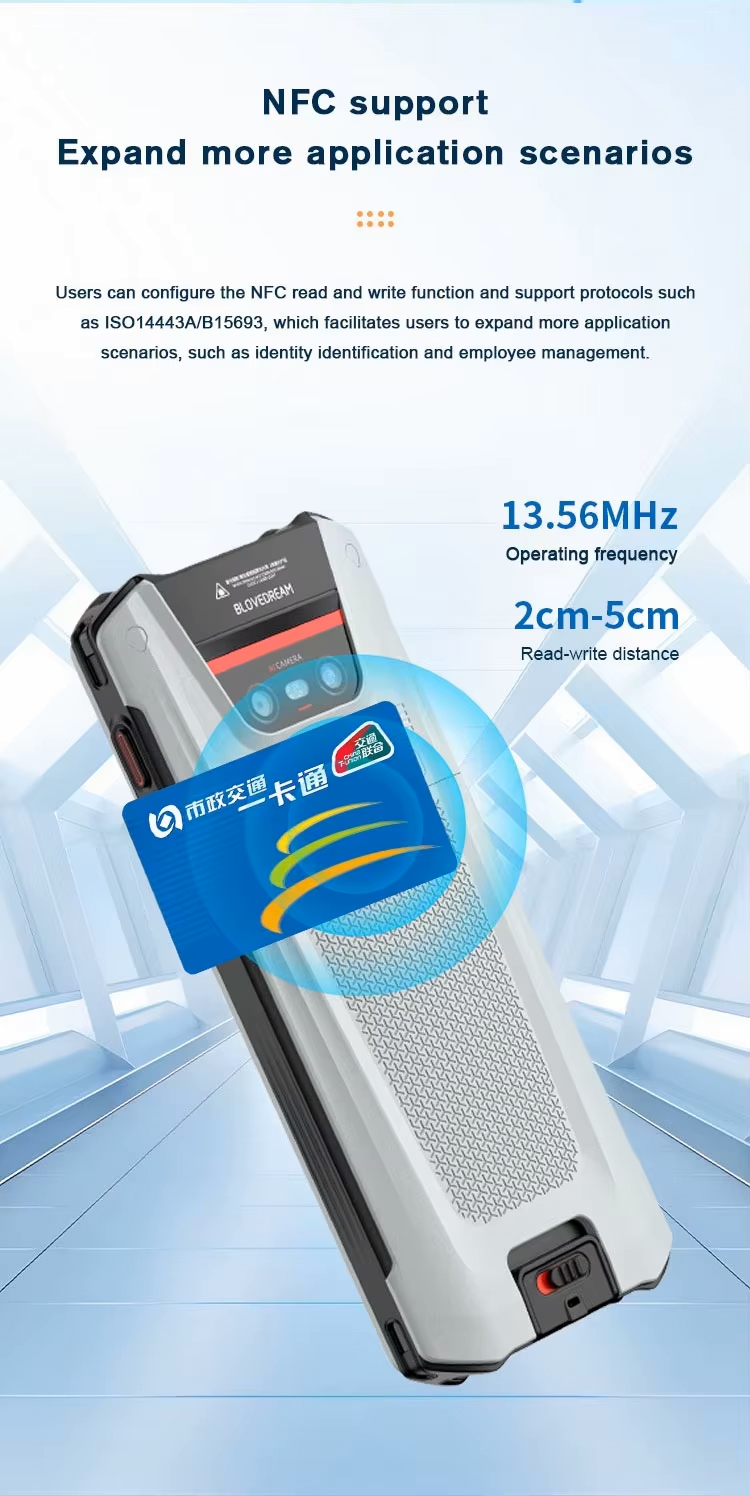

Support NFC
Expand more application scenarios

Users can configure NFC read and write functions, support

protocols such as ISO14443A/B15693, and facilitate the

expansion of more application scenarios, such as identity

recognition and employee management



Professional protection
Body Classic Hundred "Battles"

Each device undergoes rigorous drop and roll testing, and its strong

protectivecapabilities easily respond to the drop challenges

generated by the equipmentduring operation


Structural Parameter
Dimensions160.5mm(L)X70.6mm(W)X14.9mm(D)
Weight<500g
Display Screen5.5inch IPS 720*1440 px with Multi-point touch capactive screen
Expand PortSIM card, micro SD (TF) Card
Communication Interface

Type-C USB

Input ModeStandard Stylus, Handwriting, touching input or keyboard input
Battery CapacityRechargeable Li-polymer Battery 3.8V 4200mAh
Frequency8ohm 1W speaker
KeyPower key, Volume +/- key,Scan key × 2
Performance Parameter
OSAndroid 10
CPUOcta-core 64-bit 2.0GHz high-performance processor
RAM1G/2G RAM (4/64GB optional)
Flash ROMStandard 8G/16G NAND Flash Storage
Micro SD(TF) Supports up to 256GB
Data Communication
WI-FIDual-band 2.4GHz / 5GHz, Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol
FDD/TDD-LTE 4GFDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41
WCDMA 3G3G: WCDMA(850/900/1900/2100MHz)
GSM 2G2G: GSM(850/900/1800/1900MHz)
btSupport Bluetooth5.0+BLE,transmission distance 5-10 meters
Standard Modules
Camera13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting
GPSSupport A-GPS
Operating Environment
Operating-20°C to 55°C
Storage Temperature-25°C to 70°C
Environment Humidity5%RH-95%RH(no condensation)
Drop Specifications6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
Roll Specifications1000 times/0.5m, roll on 6 sides contact area
Sealed EnvironmentIP66
1D Laser Scanner (OPTIONAL)
1D Laser ScannerSymbol 955, HoneywellN4313,Mingde966
Resolution4Mil minimum width
Ambient Light10000ft.candles(107640 lux)
Scanning Speed104(±)12/sec (bothway)
Scanning Angle47o±35o(Standard) / 35o±3o(narrow angle)
Support Bar Code TypeUPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS
2D CMOS (OPTIONAL)
CMOS ScannerHoneywell N6603,N6602
The Sensor Resolution752(level)×480(vertical)pels(gray level)
Ambient LightAll dark 9000ft.candles/96900 lux
focus element (VLD)655nm ± 10nm
Support bar code typePDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
LF RFID Reader (Optional)
Frequency125kHz, 134kHz (FDX-B / HDX)
ProtocolISO11784/5, ISO18000-2
Range3-8cm
NFC Reader (Optional)
Frequency13.56MHz
ProtocolISO/IEC 18092 (ECMA 340)
Range2-4cm
