Honeywell PM45 Industrial Printer for High Quality Label Printing

Name: Honeywell PM45 Industrial Printer for High Quality Label Printing
Brand: Honeywell
Rating: 5.0 (1 reviews)

Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer’s track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.
Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels.
As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer’s versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server.
Embedded with Honeywell’s Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell’s Operational Intelligence software, users can remotely manage and monitor the PM45 printer’s diagnostics and output performance. The PM45 supports a wide range of media – including ink-in and ink-out ribbons with a 1-inch core size – enhancing the time between media resupplies.
The PM45 printer is an ideal replacement for existing Honeywell or mixed printers, especially with Honeywell’s firmware platform supporting multiple print languages. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement helps minimize downtime and maintenance needs.

Availability:

Quantity:



Inquiry Now Add to Basket

Model:
PM45
Brand:
Honeywell
Code:
8443321400

Product Description

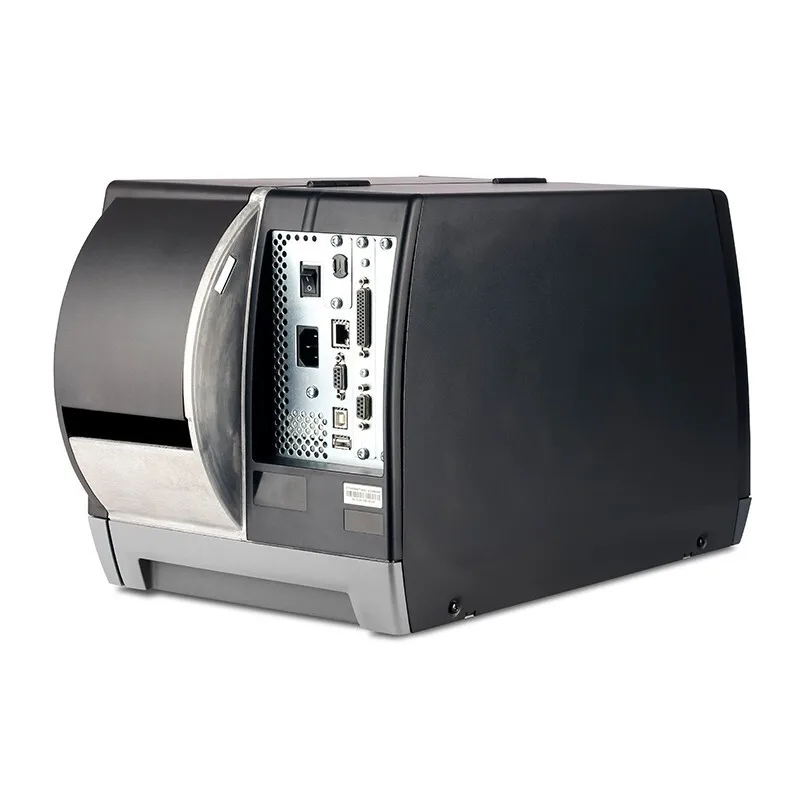

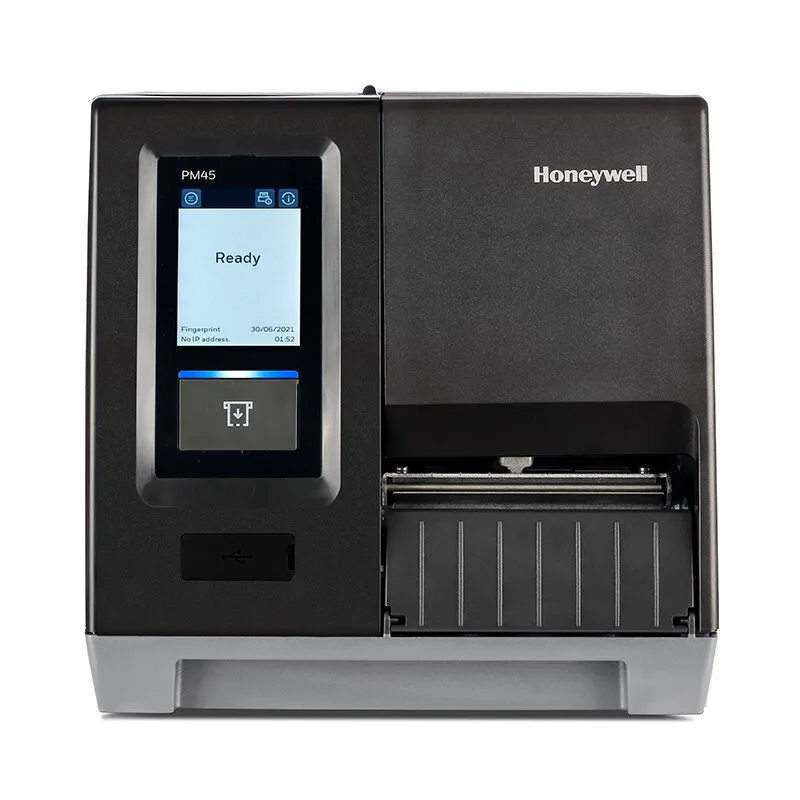

Honeywell PM45 Industrial Printer
Physical Parameters
Volume	483 mm x 295mm x 284 mm (19.0 in x 11.11.6 in x 11.2 in)
Weight	13.2 kg (29.1lbs)
Print Width
Maximum width of print (203dpi)	108 mm (4.25 in)
Maximum width of print (300dpi)	105.7 mm (4.17 in)
Maximum width of print (400dpi)	104 (4.09 in)
Maximum width of print (600dpi)	105.6 mm (4.16 in)
Print Length
Maximum length of print (203dpi)	4.8 m (189 in)
Maximum lengthof print (300dpi)	2.2m (85in)
Maximum lengthof print (400dpi)	1.2 m (47.2 in)
Maximum lengthof print (600dpi)	0.55m (22in)
Print Speed
203dpi	50-350 mm/s (2-14ips)
300dpi	50-300 mm/s (2-12ips)
400dpi	50-250 mm/s (2-10ips)
600dpi	50-150 mm/s (2-6ips)
Resolution
203dpi	8 dots/mm
300dpi	11.8 dots/mm
400dpi	16 dots/mm
600dpi	23.6 dots/mm
Interface
Standard	Ethernet 10/100 Mbps USB 2.0 Host (x2 PM45, x1 PM45C) USB 2.0 Device RS-232, up to 115.2 KB/s
Options	Parallel Interface (IEEE 1284) Industrial interface – eight digital in/out, four analog relays, one RS232/422/485 port Applicator Interface – Ext Error 8-pin miniDIN, Z-style standard DB15 port, S-style standard 14-pin Centronics, Ext Power 6-pin mini-DIN RFID – Supports EPC Class 1 Gen2, 18000-6C. Radio configured to comply with local UHF RFID regulations including FCC and ETSI. Contact local representative for availability in particular region
Supported Network Protocol	TCP/IP suite (TCP, UDP, ICMP, IGMP), LPR/ LPD, Telnet/SSH, FTP/SFTP, BOOTP, DHCP, HTTP/HTTPS, SNMPv1/2c/3, SNMP-MIBII supported – over UDP/IP (private enterprise MIB included), SMTP Supports IPv4 and IPv6
MEDIA
Label types	Labels and Tags and Linered media
Max/Min width	114/19 mm (4.5/0.75 in)
Thickness	3 mils to 10.4 mils
Style	roll paper or folded
Sensing	Gap, Notch, Black mark, Continous, Media low, Media end
Label roll maximum diameter	213mm (8.38 in)
Label Roll Core ID	38-76mm(1.5-3 in)
Ribbon
Ribbon support	inner carbon, outer carbon
Roll Max. Diameter	80 mm (3.15 in), capacity of 450 m (1,476 ft)
Ribbon Core ID	25mm (1 inch)
Media Types	Wax,Mid-range,Resin
WIRELESS CONNECTIVITY
WLAN	IEEE 802.11 a/b/g/n/ac; Wi-Fi certified, 1x1 SISO
Additional WLAN Features	802.11d/e/h/i/k/r
Security	OPEN, WEP, WPA/WPA2 (Personal and Enterprise),
Supported EAP	TLS, PEAP, TTLS, PWD, LEAP, FAST
Blue-tooth	V5.0 Blue-tooth and BLE Supported
WWAN	WWAN Radio
Slot	Micro Sim Card slot x 1
BARCODES/FONTS/GRAPHICS
Barcode Symbol	All major 1D and 2D symbologies are supported
Standards Supported	UPC/EAN Shipping Container, UCC/EAN 128, Serial Shipping Container, MH10.8 Shipping Label, AIAG (shipping parts label), OGMARS, POSTNET, HIBCC, ISBT 128, GM1724, UPS Shipping Label, Global Transport Label
FONTS	Monotype font engine Non-Latin fonts available through WTLE

GRAPHICS	Supports PCX, PNG, GIFand BMP file formats. Other formats supported with Label Generation Tools.

SOFTWARE
Printer Command Languages	Fingerprint (FP) Direct Protocol (DP) Intermec Printer Language (IPL)3 ZSim2 (ZPL-II), DPL, XML-enabled for SAP® AII and Oracle® WMS, PDF, C#
Application/Driver	InterDriver Windows® printer driver, CUPS driver for Linux, Honeywell Device Types for SAP, Honeywell label design and print package
Smart print language	C# for Printers: Honeywell Smart Printing Developer Resource Kit; write apps with .NET- compatible development environments.
Configuration and Device Management Support (optional)	OpIntel - PrintSet 5 for printer configuration; sophisticated web interface for configuration, upgrades and 1:1 management; Print Set MC (Android™ and Apple® iOS) for printer configuration via Bluetooth LE only
Working Environment
Ambient Operating Temperature	+5°C to +40°C (+41°F to +104°F)
Storage Temperature	-20°C to +70°C (-4°F to +152°F)
Operating Humidity	20 to 85% non-condensing
Storage Humidity	5 to 90% non-condensing
POWER SUPPLY
AC Voltage	100 to 240V AC, 50 to 60Hz
Power Consumption	Standby 9.6W; Peak 270W (24V), Peak 145W (33V)

Product Description

Honeywell PM45 Industrial Printer

Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The PM45 industrial printer offers high-precision and high-volume printing along with track-and-tracefunctionality to increase production efficiency and supply chain transparency in food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management. Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high print quality of barcodes, texts, and images, even on small electronic component and pharmaceutical labels. As a highly connected industrial printer, the PM45 is packed with first-in-class WWAN connectivity to enable deployment with minimal limitation from site network topology.

The PM45 printer is also scalable to incorporate RFID, parallel, industrial, and applicator interfaces to address your unpredictable business needs in the future. To support your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system whether it’s on a local server or the cloud. With the embedded Honeywell software tool Smart Parse, you can quickly change the position, size of objects and barcode, or font type on labels without the need to change the backend system or having any programming skills. Honeywell Operational Intelligence equipped the PM45 printer with the capability of remote management for issues diagnostics and output performance tracking.

The PM45 can support a wide range of media – including ink-in and ink-out ribbons with one-inch core size – enhancing the time between media resupply. With Honeywell’s firmware platform that supports multiple print languages, the PM45 printer is an easy replacement for existing Honeywell or mixed printers. A rugged, all-metal print mechanism, easy printhead,and tool-free platen roller replacement, help minimize downtime and maintenance needs. The Honeywell PM45 is built for smart label solutions that help enterprises enhance automation and intelligence in manufacturing and supply chain management for high operating efficiency.
